Denny StudioEdge Bridge Frame Connector Set

Connector Overview

Bridge Connector Set for Expanded StudioEdge Frame Layouts

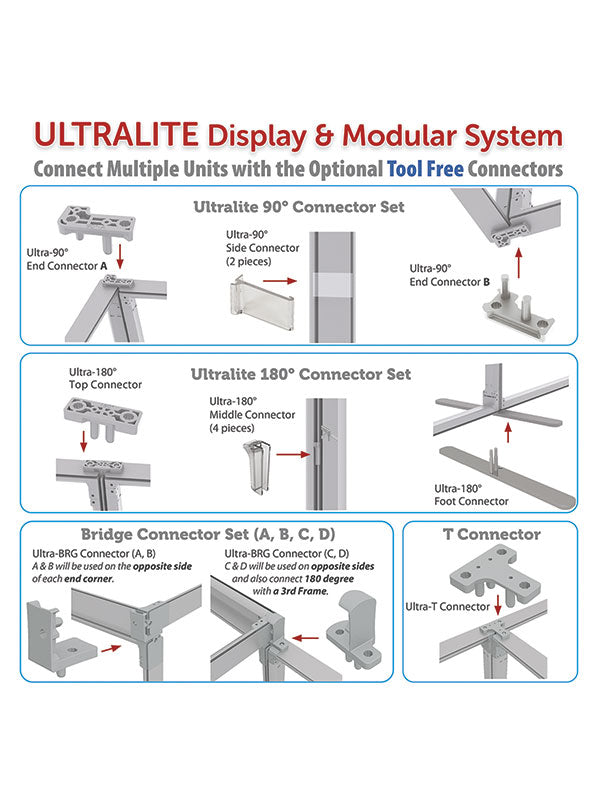

Denny StudioEdge Bridge Connector Set is used when expanding the Denny StudioEdge Double-Sided Modular Backdrop System into larger connected backdrop frame layouts. This set is designed for configurations where additional StudioEdge frames are tied into a broader arrangement beyond a simple straight run or basic corner setup.

The bridge connectors in this set are used to help create more complex connected frame layouts while keeping the connected sections aligned and structurally consistent. The set includes multiple connector types used in specific positions within the connected layout.

When This Set Is Used

• To expand StudioEdge into larger connected backdrop frame layouts
• To connect additional frames within a more complex modular setup
• To build beyond a simple straight backdrop setup or basic corner backdrop setup

This connector set is only needed when StudioEdge frames are being physically connected together in a larger layout. It is not needed for single freestanding frames or for multi-frame setups where the frames are positioned separately and not attached to one another.

Product Details & Compatibility

Included Parts and Compatibility

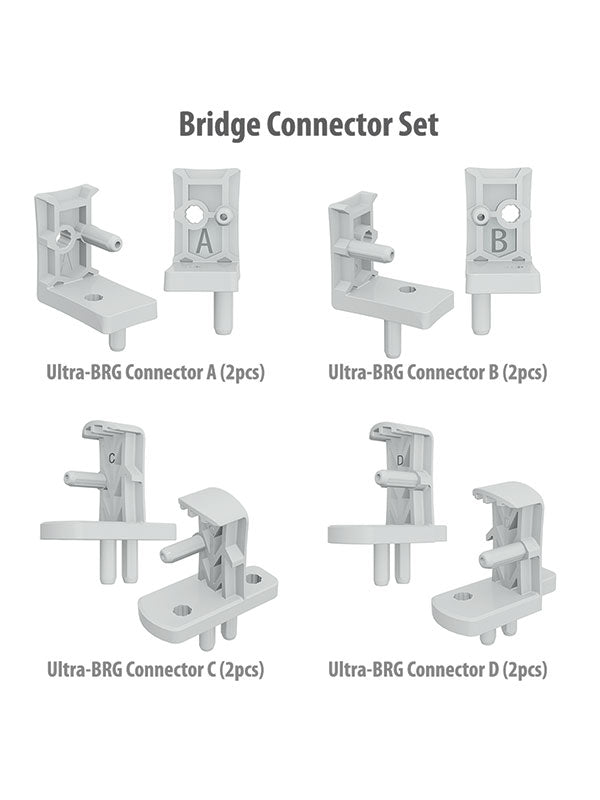

This set includes multiple bridge connector types used within expanded StudioEdge frame layouts. Each connector type is intended for a specific position within the connected configuration.

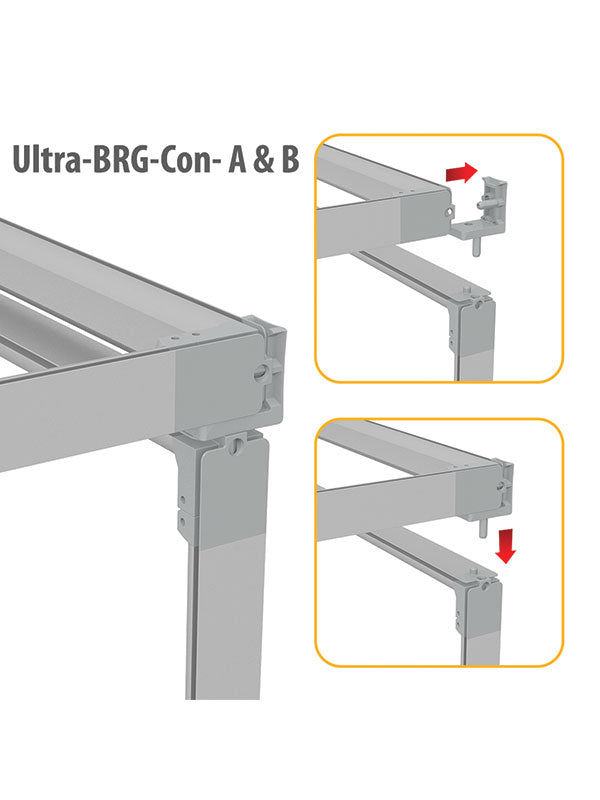

• Connector types A and B for specific end or corner bridge positions

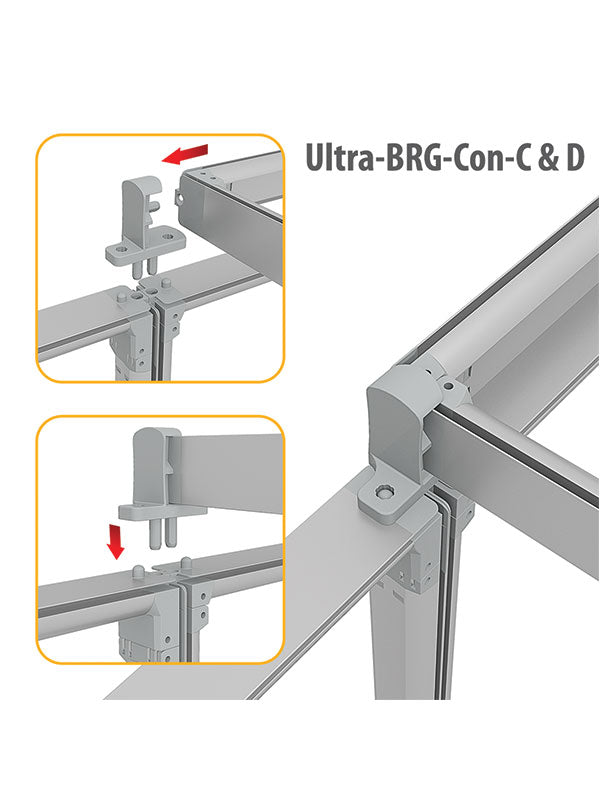

• Connector types C and D for connecting additional frame sections within the layout

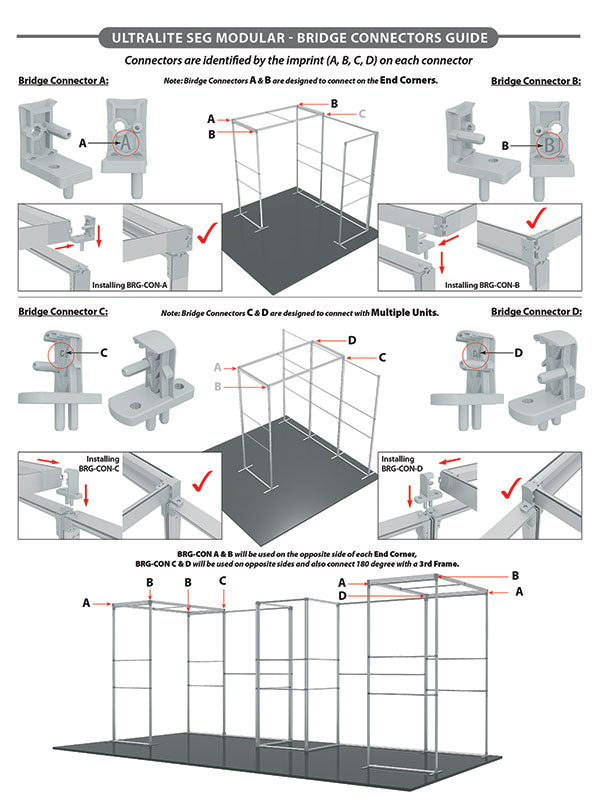

• Type markings on the connectors for easier identification during setup

These connectors are intended for use with the Denny StudioEdge Double-Sided Modular Backdrop System and should be selected only for compatible connected frame configurations.
